Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
- programervn
-
- Fuera de línea
- poster 3
-
Enregistré
- Mensajes: 14
- Thanks: 1
Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
6 días 11 horas antes
Which version firmware did you update? Can you guide step by step.
I still stuck with my ugreen.
I still stuck with my ugreen.
Thank you, I managed to make a part work and by changing the led line of the CFG file now the part flashes but not on the whole part, too bad
VID = 0xbda
PID = 0x9220
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9220"
SCSI_PRODUCT = "RTL9220"
SERIAL = "012345678918"
DISK_IPS_THRES = 1
LED = 0x3
;HW_LED_CFG = 0x0
CUSTOMIZED_LED = 42 00 02 00 00 00 00 00 00 00 00 00 00 00 00
;SUSPEND_LED_OFF = 0x0
UART_DBG_PIN = 100
PERIPH_API = 1
UART_BAUD_RATE = 57600
SUSPEND_DISK_OFF = 0x7
SCSI_WP_PIN = 0xb
Por favor, Conectar o Crear cuenta para unirse a la conversación.
- admin
-
Autor del tema
- Ausente
- Admin
-
Administrateur
- Mensajes: 424
- Thanks: 198
Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
6 días 11 horas antes - 6 días 11 horas antes
Despite the change in the CFG file, this does not allow total lighting but only on one side.

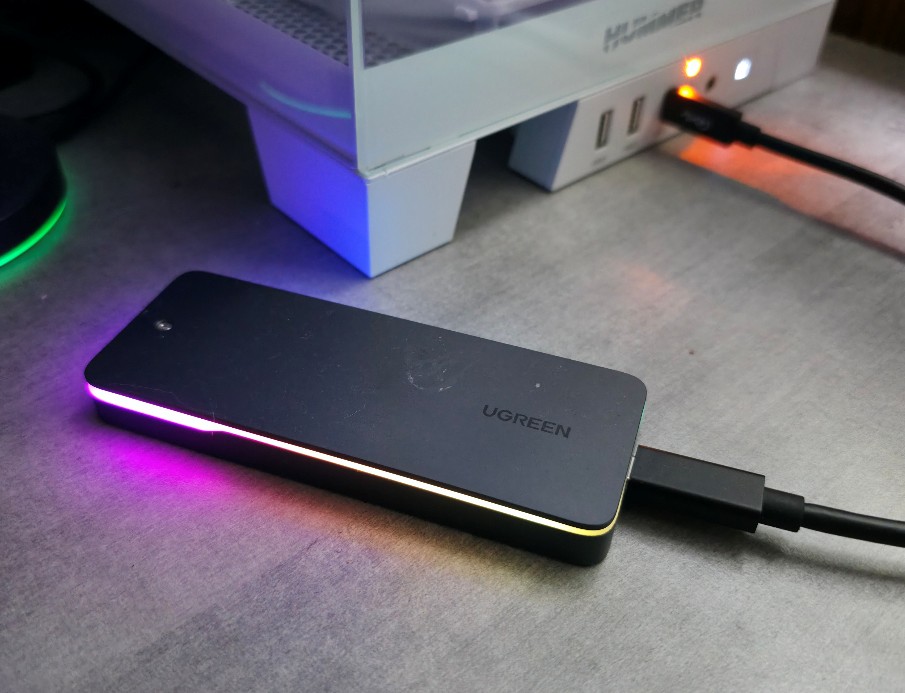

I have a Ugreen RGB box but how do I retrieve the LEd bin file?
I have a Ugreen RGB box but how do I retrieve the LEd bin file?
Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060, Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Última Edición: 6 días 11 horas antes por admin.
Por favor, Conectar o Crear cuenta para unirse a la conversación.
- programervn
-
- Fuera de línea
- poster 3
-
Enregistré
- Mensajes: 14
- Thanks: 1
Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
6 días 10 horas antes
Did you use version 1.32.82 and light only has one side?
The right led bin file I think we need to wait from ugreen.
The right led bin file I think we need to wait from ugreen.
Despite the change in the CFG file, this does not allow total lighting but only on one side.
I have a Ugreen RGB box but how do I retrieve the LEd bin file?
Por favor, Conectar o Crear cuenta para unirse a la conversación.
- admin
-
Autor del tema
- Ausente
- Admin
-
Administrateur
- Mensajes: 424
- Thanks: 198
Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
6 días 9 horas antes - 6 días 9 horas antes
Yes, only on the right side they hope for a firmware
Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060, Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Última Edición: 6 días 9 horas antes por admin.
Por favor, Conectar o Crear cuenta para unirse a la conversación.
- programervn
-
- Fuera de línea
- poster 3
-
Enregistré
- Mensajes: 14
- Thanks: 1
Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55
6 días 27 minutos antes
Bad news, after some update firmware, now my ugreen enclosure is brick
Computer not recognized device any more
This enclosure is quite solid, does any one know how to unbrick?
Computer not recognized device any more
This enclosure is quite solid, does any one know how to unbrick?
Yes, only on the right side they hope for a firmware
Por favor, Conectar o Crear cuenta para unirse a la conversación.
