NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- Almighty1
-
- Desligado
- Big Poster
-
Enregistré
- Mensagens: 40
- Thanks: 31
- Stasiz
-
- Desligado
- Poster 2
-
Enregistré
- Mensagens: 7
- Thanks: 3
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
3 dias 17 horas atrás
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- Almighty1
-
- Desligado
- Big Poster
-
Enregistré
- Mensagens: 40
- Thanks: 31
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
3 dias 8 horas atrásTake the number(s) from the following table and divide by 8 to get the MB/sec so 5000 divided by 8 is 625.Hi. Thanks for answering. But 5gbps is not about 625mb/s? I use cable 3.0 and in first time show me my 625mb/s speed but after speed down.
I use asus x415ea.
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- Almighty1
-
- Desligado
- Big Poster
-
Enregistré
- Mensagens: 40
- Thanks: 31
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 dia 8 horas atrás - 1 dia 6 horas atrás
SABRENT EC-SNVE newly bought from Amazon.com shipped/delivered on July 28, 2025. Stamped code 2509 which is probably Year 2025 Week 9 (February 26, 2025-March 1, 2025)
Stock Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)
Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)/UTHSB_MPtool_Lite_v1.15.8.0119 provided by SABRENT Technical Support
Download at:
download.ru/files/6FLKjNHh
Dump
Successfully updated to firmware v1.34.39.032625
Question for admin, what is the difference between these two firmware(s) v1.34.39.032625?
Stock Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)
Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)/UTHSB_MPtool_Lite_v1.15.8.0119 provided by SABRENT Technical Support
Download at:
download.ru/files/6FLKjNHh
Dump
Code:
**************************************************************
Device : [Port5] : Sabrent SSD #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Sabrent"
PRODUCT : "Sabrent"
SERIAL : "830720240913000A"
SCSI_PRODUCT : "SSD "
SCSI_VENDOR : "Sabrent "
USB_SELF_PWR : 0x01
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 0a 01 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.33.44
FW Build Date : 2024.01.18
IC Pkg Type : PCIE/SATA
UUID : n/a
Disconn_ForceUSB2 : false
Successfully updated to firmware v1.34.39.032625
Question for admin, what is the difference between these two firmware(s) v1.34.39.032625?
Ultima edição : 1 dia 6 horas atrás por Almighty1.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- Almighty1
-
- Desligado
- Big Poster
-
Enregistré
- Mensagens: 40
- Thanks: 31
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 dia 3 horas atrás - 1 dia 3 horas atrás

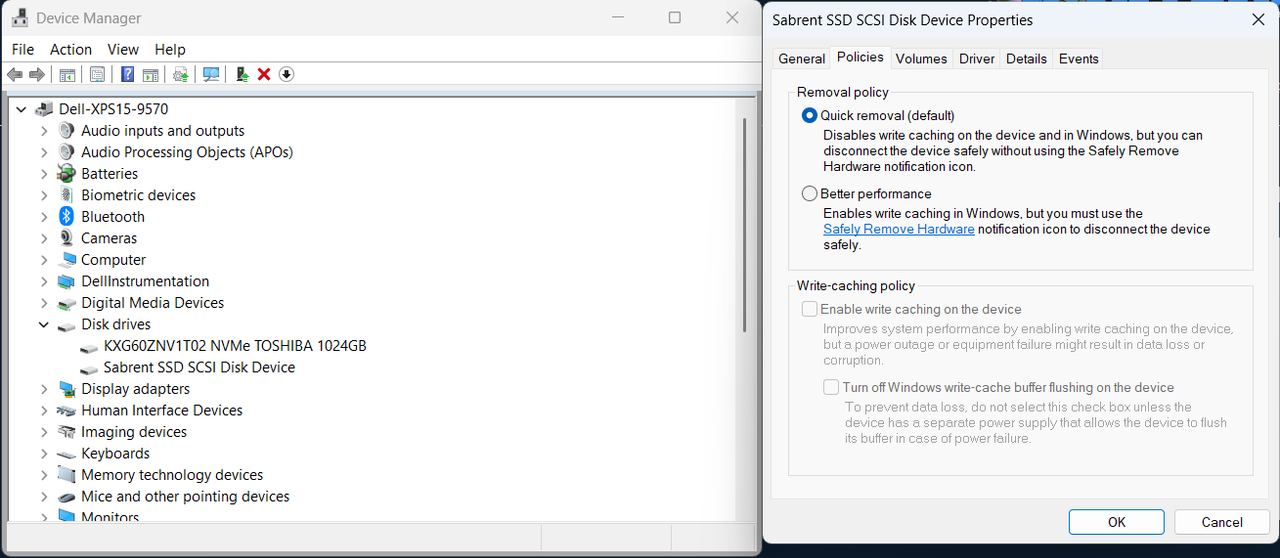

As far as speed is concerned, right clicking on properties and then the removal policy and changing it to "Better performance" and then enable write cachinng should give maximum performance:

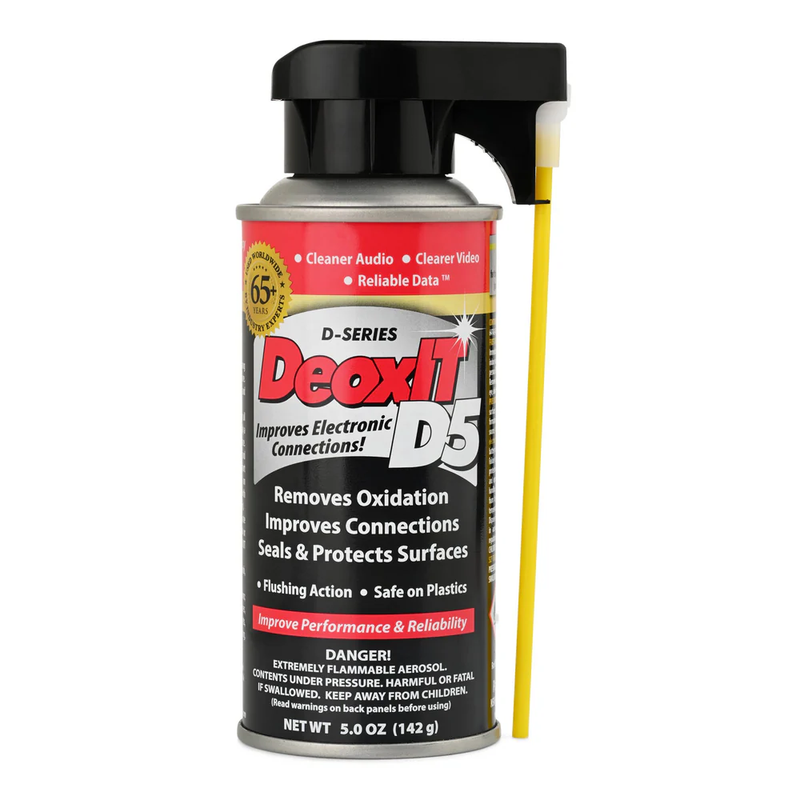

I also don't use Isopropanol (Isopropyl Alcohol) to clean the connectors as for all electrical connections whether AC/DC including the cable connectors, battery contacts, light bulb contacts and the SSD M.2 connector, I use a Caig DeOxit D5 which is a contact cleaner and it also improves conductivity and performance:
Isopropanol (Isopropyl Alcohol) 99% is what I use to remove things like thermal pads, thermal grease.
I also don't use Isopropanol (Isopropyl Alcohol) to clean the connectors as for all electrical connections whether AC/DC including the cable connectors, battery contacts, light bulb contacts and the SSD M.2 connector, I use a Caig DeOxit D5 which is a contact cleaner and it also improves conductivity and performance:
Isopropanol (Isopropyl Alcohol) 99% is what I use to remove things like thermal pads, thermal grease.
Ultima edição : 1 dia 3 horas atrás por Almighty1.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
