Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 mês 2 semanas atrás
Any idea how a couple of people are bricking the RTL9220
I have a RTL9220-VB-CG on the way finally getting my first RTL9220
is there some sort of a bug i should know about?
I can unbrick it ofc but just checking
I have a RTL9220-VB-CG on the way finally getting my first RTL9220
is there some sort of a bug i should know about?
I can unbrick it ofc but just checking
Code:
======================================================
CHIP ARCHITECTURE UNITS LOG
======================================================
CONTROLLER CHIP TOTAL UNITS
======================================================
ASMedia ASM225CM (SATA Only) 01 Unit
ASMedia ASM2362 (PCIE Only) 02 Units
ASMedia ASM2364 (PCIE Only) 19 Units
ASMedia ASM2464 (PCIE Only) 02 Units
JMicron JMS581DL (PCIE/SATA) 02 Units
JMicron JMS583 (PCIE Only) 41 Units
Maxio MAS1102 (SATA Only) 04 Units
Phison PS2308 (PCIE Only) 07 Units
Phison U17 (PCIE Only) 04 Units
Realtek RTL9210B (PCIE Only) 10 Units
Realtek RTL9210B-CG (PCIE/SATA) 05 Units
Realtek RTL9220-VB-CG (PCIE/SATA) 01 Unit
======================================================
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- Stasiz
-
- Desligado
- poster 5
-
Enregistré
- Mensagens: 20
- Thanks: 9
- jelb0
-
- Desligado
- poster 4
-
Enregistré
- Mensagens: 17
- Thanks: 4
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 mês 2 semanas atrásTurns out the bottom doesn't contain any chips. So probably it's the little one on the bottom right of the Realtek chip. Very small, too small for tweezers, I think.its most prob at the bottom side of the pcb sometimes they are underneath
be very careful when you do it and dont accidently short out any other connections when doing it btw
it will boot into the falsafe firmware that is on the 9220 then so you can reflash the spi from said failsafe firmware
Anyway, the board is destroyed, this is just for information. Waiting for a new AliExpress offer for this one, they increased the price to 18 euros now...
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- jelb0
-
- Desligado
- poster 4
-
Enregistré
- Mensagens: 17
- Thanks: 4
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

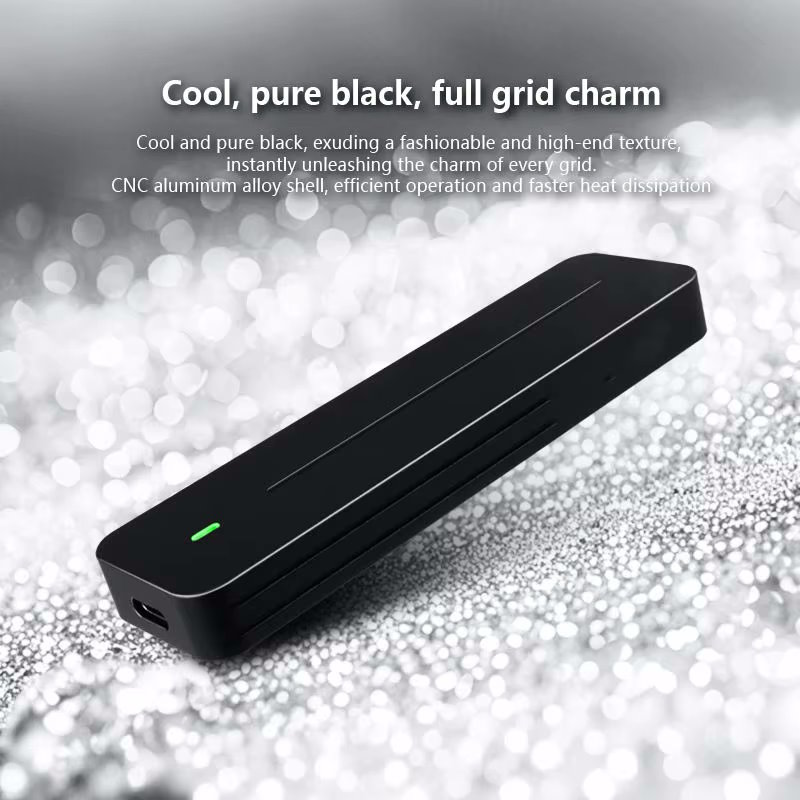

1 mês 1 semana atrásWhich enclosure is this?
