NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- joan
- Çevrim dışı
- Newbie
-
Enregistré
- İletiler: 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 yıl 6 ay önce - 1 yıl 6 ay önce
Hello, I just bricked my Orico NVME by flashing the B version instead of the A, it has a RTL9210 chip and a flash memory labelled as FM25Q04. When I connect it to the computer it does nothing and it is not recognized. I tried to short the pins but then Windows says it does say "Device Descriptor Request Failed". I also tried to use a CH341A mini programmer to flash the old driver UTNVME_A_v1.27.24.090721.bin but it still does not work. Could someone please share the flash dump so I can flash it with the mini programmer? Any other ideas to bring it back to life? Thanks.
EDIT: Got it alive by shorting the CS# and Hardware Reset Pin instead of CS# and VCC!
EDIT: Got it alive by shorting the CS# and Hardware Reset Pin instead of CS# and VCC!
Son düzenleme: 1 yıl 6 ay önce Düzenleyen:joan
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- admin
- Konu yazarı
- Uzakta
- Admin
-
Administrateur
- İletiler: 779
- Thanks: 382
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 yıl 6 ay önceConfiguration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- exodus
- Çevrim dışı
- Newbie
-
Enregistré
- İletiler: 3
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 yıl 6 ay önce
Anyone have any idea how to make it show an actual serial number of installed SSD or atleast change it to something else instead of "0000000000000000" that is showing up in cmd when doing wmic diskdrive get SerialNumber command?
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- admin
- Konu yazarı
- Uzakta
- Admin
-
Administrateur
- İletiler: 779
- Thanks: 382
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 yıl 6 ay önce - 1 yıl 6 ay önce

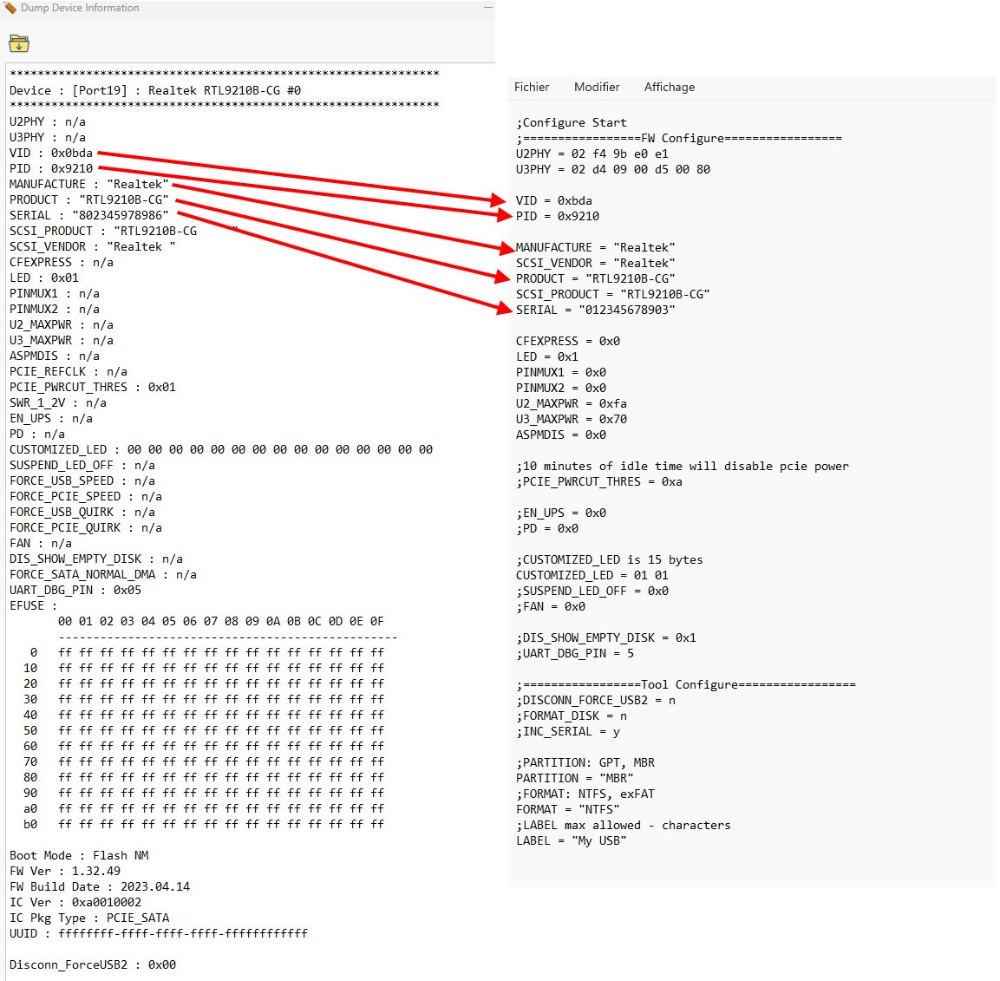

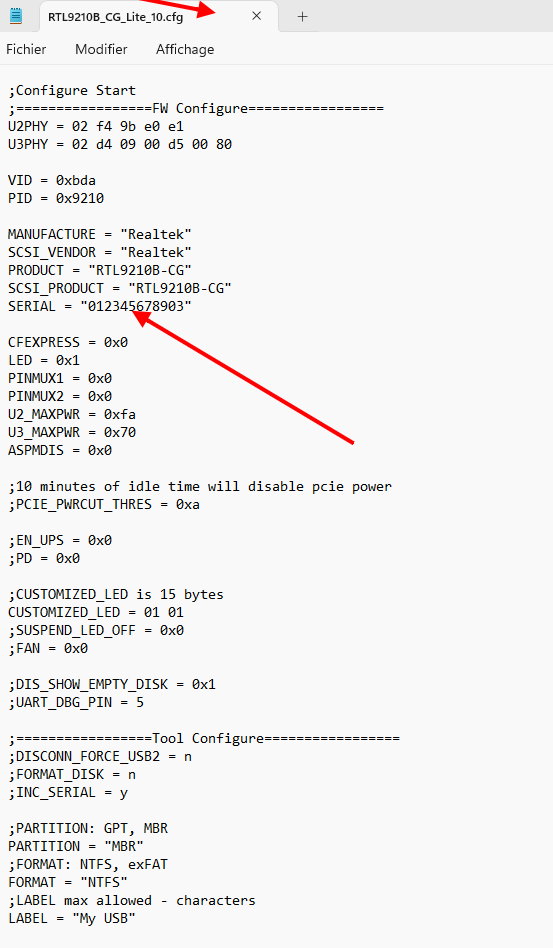

Hi, you open the dump to retrieve the configuration of your box then you compare with a *.CFG file like the one below then you copy between the Dump and your source *.CFG to match and at the same time you change your serial number then you save your *.CFG in backup.cfg for example.

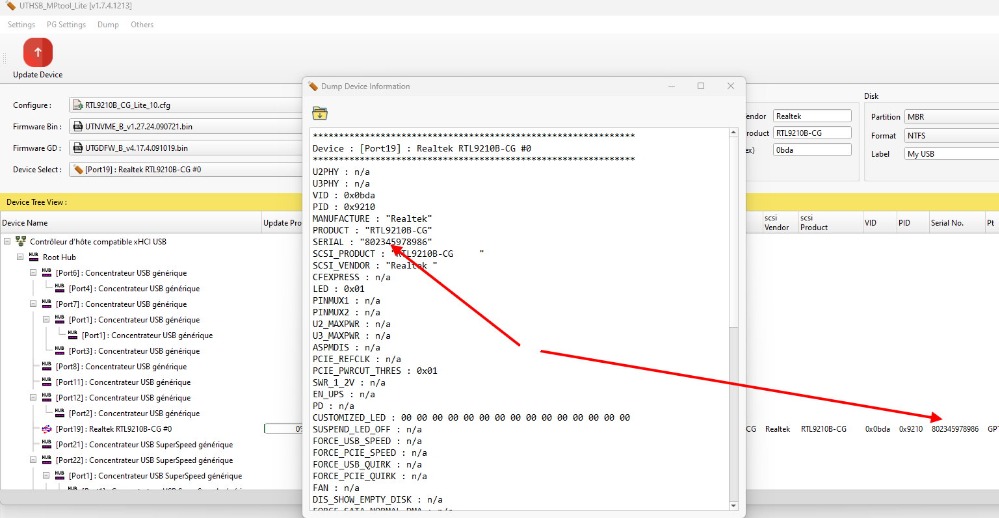

in the Tool, just take the backup.cfg file instead of RTL9210B_CG_Lite_10.cfg then select the firmware to update it
in the Tool, just take the backup.cfg file instead of RTL9210B_CG_Lite_10.cfg then select the firmware to update it
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Son düzenleme: 1 yıl 6 ay önce Düzenleyen:admin
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- exodus
- Çevrim dışı
- Newbie
-
Enregistré
- İletiler: 3
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 yıl 6 ay önce
Thanks for reply, editing serial in config is what I tried first - seems like it does nothing, serial changes if I look at the new dump after flashing but system still shows zero's instead of serial
