NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

TiX
Çevrim dışı
Poster
Enregistré
İletiler: 5
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 4 ay önce

#1158

The usb port is Type-C 3.2 Gen1

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

Alien Invader
Çevrim dışı
Poster
Enregistré
İletiler: 7
Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 4 ay önce - 1 yıl 4 ay önce

#1159

3.2 Gen1 is 5Gbit, some mainboard makers go cheap and wire Type-C ports to 5Gbit for cost cutting. A nice example are those cheap A620 Chipsets which have the option for 10Gbit both from CPU and Chipset.
I recently got a M2 SATA cheap 512GB SSD to test my Unionsine MD202 case cause I had only trouble getting my SM2263XT drive to work with it. For some reason that Intenso NVME SSD ain't playing well with anything. The MD202 works just fine with the other NVME I have around (RTS5765).

Son düzenleme: 1 yıl 4 ay önce Düzenleyen:Alien Invader

Şu kullanıcı(lar) teşekkür etti: admin

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

admin
Konu yazarı
Çevrim dışı
Admin
Administrateur
İletiler: 699
Thanks: 361

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 4 ay önce - 1 yıl 4 ay önce

#1160

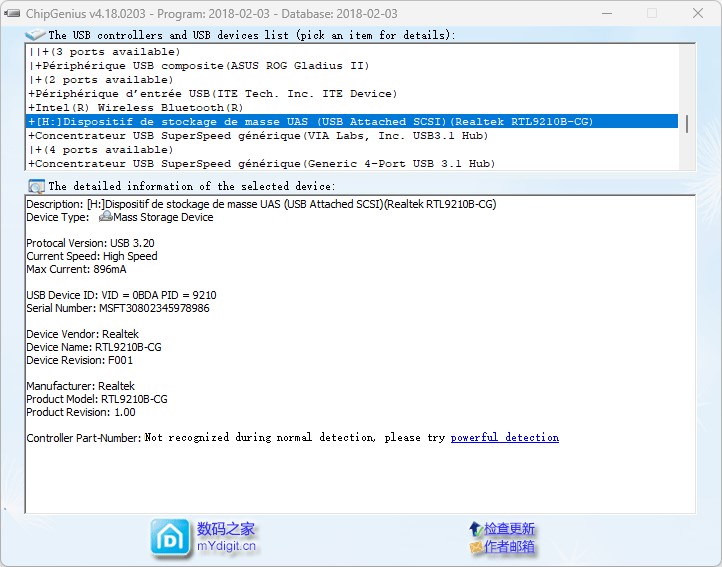

to be sure to be in USB 3.2, check with the Chipgenius utility below

the 500 Mbps instead of 1000Mbps and a speed problem due to the port or the cable as said by Alien Invader
The firmware can also but already check the port then the cable (USB-C port)

Bu ek dosyasını konuklar görüntüleyemez.
Görüntülemek için hesabınız varsa oturum açın ya da kayıt olun.

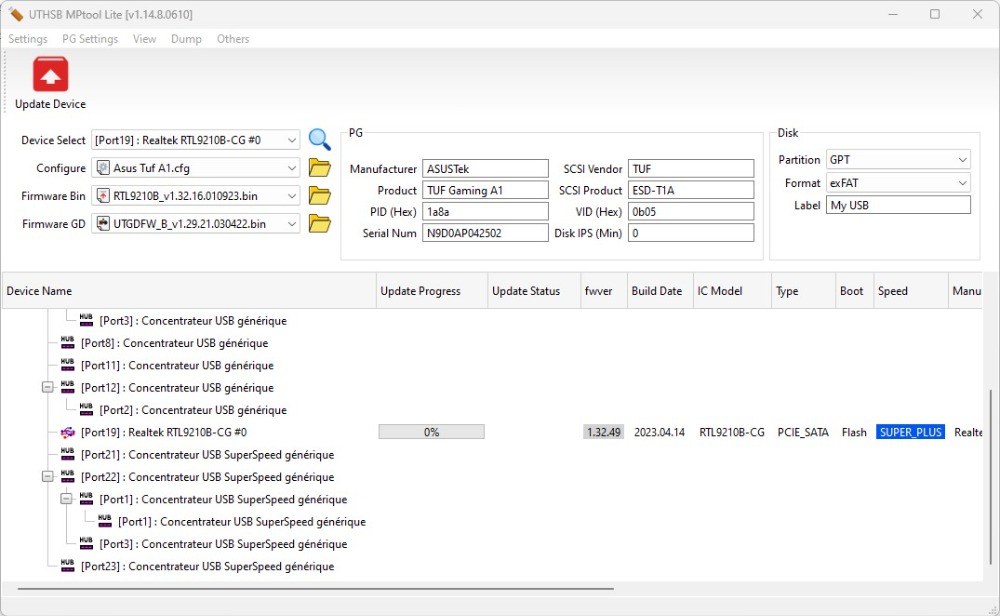

or via the update utility (Super plus)

Configuration
