ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 10 ay önce - 1 yıl 10 ay önce
#1174
MSI GF66 spec says 1x Type-C USB3.2 Gen1 which means 5Gbit port. There is no USB 10Gbit support on your laptop.

3.2 Gen1 -> 5Gbit (Same as 3.0 / 3.1 Gen1)
3.2 Gen2 -> 10Gbit
3.2 Gen2x2 -> 20Gbit
Son düzenleme: 1 yıl 10 ay önce Düzenleyen:Alien Invader
Şu kullanıcı(lar) teşekkür etti: admin, dmitry

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

  • admin
  • admin kullanıcısının avatarı Konu yazarı
  • Uzakta
  • Admin
  • Admin
    Administrateur
  • İletiler: 306
  • Thanks: 96

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 10 ay önce - 1 yıl 10 ay önce
#1175
Alien Invader it can work but on the USB-C port but not sure it works in 10Gbps

in USB 3.2. Gen1 this is a bit tricky because not clear on the sites

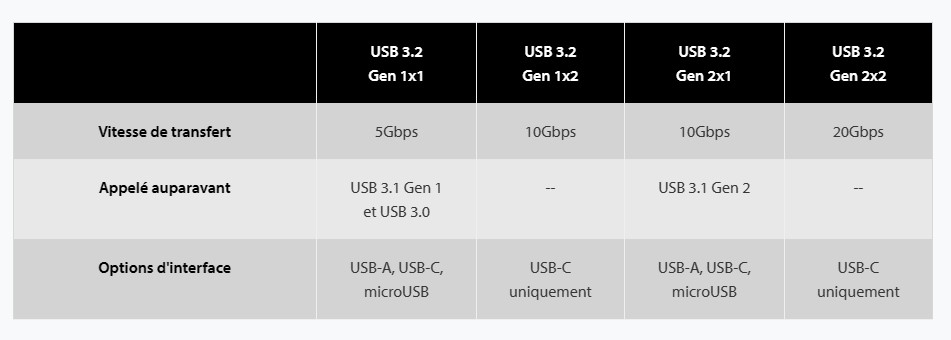

Quelle est la différence entre USB 3.1 Gen 1, Gen 2 et USB 3.2 ? - Kingston Technology

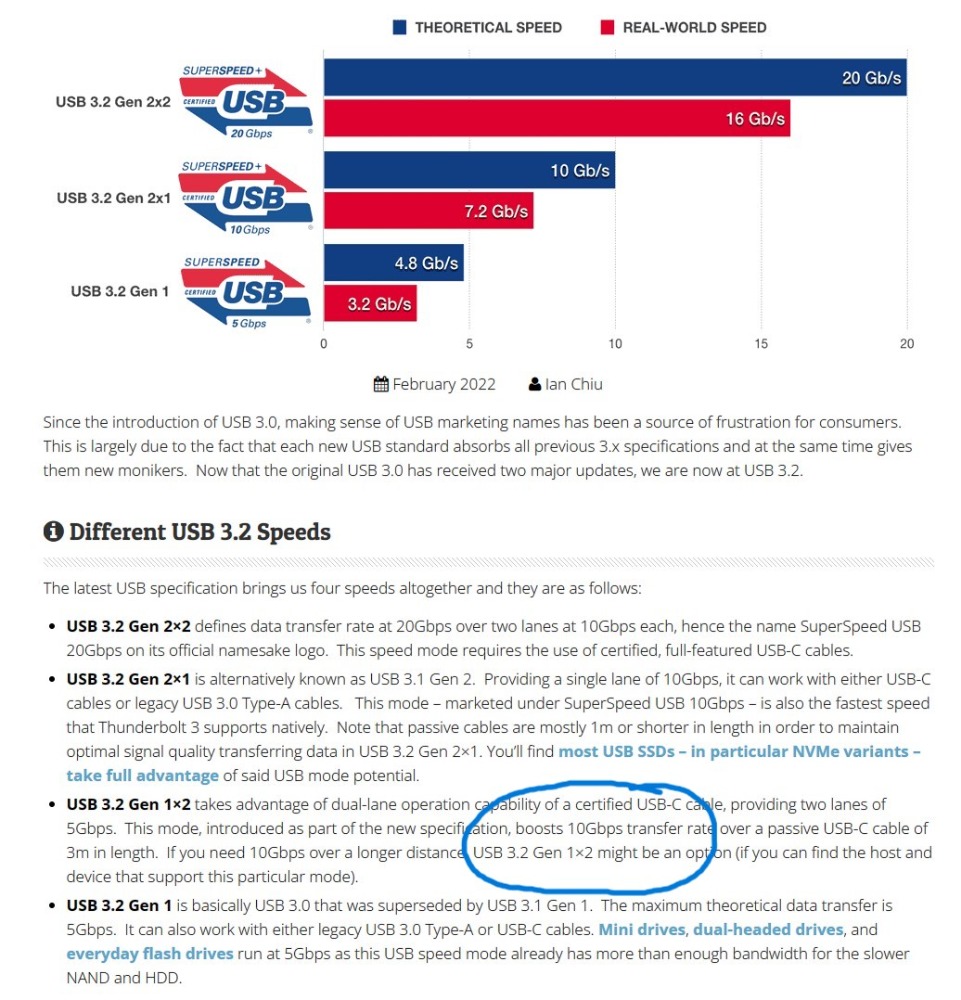

USB 3.2 Speed Comparison & Real-world Performance (everythingusb.com)






Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Son düzenleme: 1 yıl 10 ay önce Düzenleyen:admin

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

  • admin
  • admin kullanıcısının avatarı Konu yazarı
  • Uzakta
  • Admin
  • Admin
    Administrateur
  • İletiler: 306
  • Thanks: 96

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 10 ay önce
#1176
Alien Invader Not easy to know exactly the possibilities of the 3.2 chipset (Gen 1 or Gen 1x1)?

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 10 ay önce
#1177
If one thing is certain thats the crappy naming of USB after 3.0, they made it even worst now with USB4 just go ahead and check. As for the speed issue I think MSI on their website ( MSI GF66)
says it clearly that the laptop has only 5Gbit USB ports.

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

  • admin
  • admin kullanıcısının avatarı Konu yazarı
  • Uzakta
  • Admin
  • Admin
    Administrateur
  • İletiler: 306
  • Thanks: 96

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 yıl 10 ay önce
#1178
Alien Invader thank you for the info but it's to tear your hair out with it's USB 3.2 standard. xxxxxxxxxx bullshit

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
