Soru NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- TiX
-
Çevrim dışı
- Poster
-
Enregistré
- İletiler: 5
- Thanks: 0
TiX tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı
Posted 1 yıl 1 ay önce #1181Samsung mz-vl45120" Using a MSI katana gf66 notebook the mainboard is "msi MS-1584" "
If your box is well connected in USB 3.2, try to see if your disk, what model is it?
Otherwise you can try to update but I don't know if that solves your problem, to see
I don't expect 5Gbs but at least 1Gbs
Last Edit:1 yıl 1 ay önce
Yazan: TiX
Son düzenleme: 1 yıl 1 ay önce Düzenleyen:TiX
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- admin
-
Çevrim dışı Konu yazarı
- Admin
-
Administrateur
- İletiler: 574
- Thanks: 265
admin tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı
Posted 1 yıl 1 ay önce #1182
No Alien Invader explains that to take advantage of the 1Gbps transfer rate for the SSD, you must connect the box to a 10Gbps port
Example of USB 3.2 port speed
USB 3.2 1x1 = 5Gbps = 500Mbps SSD transfer rate (Read/Write)
USB 3.2 2X1 =10Gbps = 1000Mbps SSD transfer rate( Read/Write)
USB 3.2 2x2 = 20Gbps = 2000Mbps = 2000Mbps SSD transfer rate (Read/Write)
Example of USB 3.2 port speed
USB 3.2 1x1 = 5Gbps = 500Mbps SSD transfer rate (Read/Write)
USB 3.2 2X1 =10Gbps = 1000Mbps SSD transfer rate( Read/Write)
USB 3.2 2x2 = 20Gbps = 2000Mbps = 2000Mbps SSD transfer rate (Read/Write)
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last Edit:1 yıl 1 ay önce
Yazan: admin
Son düzenleme: 1 yıl 1 ay önce Düzenleyen:admin
Şu kullanıcı(lar) teşekkür etti: Alien Invader
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- Alien Invader
-
Çevrim dışı
- Poster
-
Enregistré
- İletiler: 7
- Thanks: 3
Alien Invader tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı
Posted 1 yıl 3 hafta önce #1203
Anyone has a clue if the NVME-TO-USB adapters like the 9210B can initialize the Host Memory Buffer feature of the newer NVME SSD's ?
Yazan: Alien Invader
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- blackbile
-
Çevrim dışı
- Poster
-
Enregistré
- İletiler: 6
- Thanks: 1
blackbile tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı
Posted 1 yıl 2 hafta önce #1214

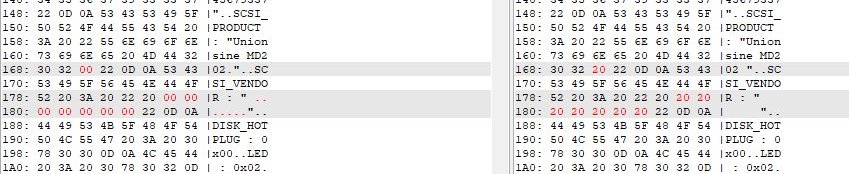

I have a Unionsine MD202, dumped the config, flashed the latest fw from this topic and it works, though it is strange that I could not write 00 - as there is 20 again dumping the flashed unit...
Yazan: blackbile
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- admin
-
Çevrim dışı Konu yazarı
- Admin
-
Administrateur
- İletiler: 574
- Thanks: 265
admin tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı
Posted 1 yıl 2 hafta önce #1215Procédure pour restaurer le firmware de secours
www.station-drivers.com/index.php/en-us/...losures-usb-3-2-nvme
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Yazan: admin
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
