ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Replied by Galixte on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 6 天 � #1051
You can flash without SSD inside the USB enclosure. This parameter allows it:
Code:
DIS_SHOW_EMPTY_DISK : 0x01
Last Edit:1 年 6 天 � Galixte
Last edit: 1 年 6 天 � by Galixte.
以下用户感谢了你: admin

登录注册一个帐号 以加入对话

Replied by ethereal on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 6 天 � #1053

If anyone is interested in testing, here is the latest firmware from JEYI - version 1.32.49:
krakenfiles.com/view/jqXPOCvl13/file.html
I flashed it on my ORICO enclosure with custom config file and everything works fine.

Thanks for providing this firmware.

Today I've flashed it to my Sabrent EC-SNVE and everything seems fine so far.
ethereal

登录注册一个帐号 以加入对话

Replied by cyberops on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 2 天 � #1056

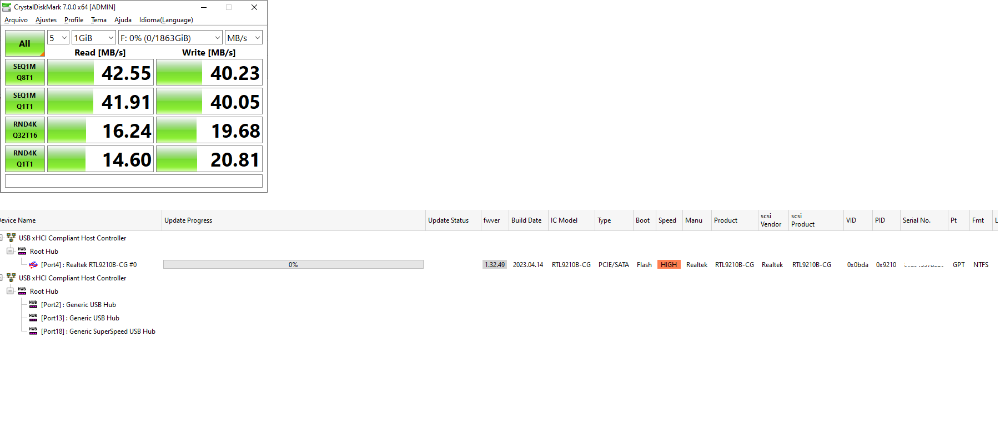

hello, i have an orico M2PJM-C3 with a RTL9210B with a Western Digital Green SN350. i have updated the firmware to 1.32.49 and i have this crystaldiskmark results. what am i doing wrong?
I also tried to run ubuntu and keep getting the drive to shutdown apparently. dont know what is happening.




Last Edit:1 年 2 天 � cyberops
Last edit: 1 年 2 天 � by cyberops.

登录注册一个帐号 以加入对话

Replied by spike_V_sky on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 2 天 � #1057
@cyberops

Have you used the correct config file from your enclouser when you flashed the new firmware ?
Have you checked if the usb port where the enclouser is connect is 3.1 or 2.0 ?
Last Edit:1 年 2 天 � spike_V_sky
Last edit: 1 年 2 天 � by spike_V_sky.
以下用户感谢了你: cyberops

登录注册一个帐号 以加入对话

  • admin
  • admin的头åƒ� 离开 Topic Author
  • Admin
  • Admin
    Administrateur
  • 帖子: 553
  • Thanks: 248

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 2 天 � #1058

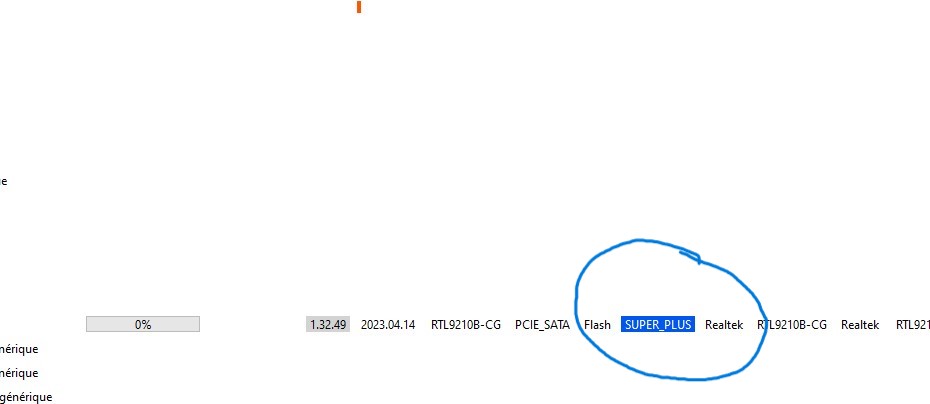

spike_V_sky you are absolutely right, check that you have connected to a USB 3.2 port





USB port speed


USB 2.x


USB 3.0/3.1


USB 3.2



Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:1 年 2 天 � admin
Last edit: 1 年 2 天 � by admin.

登录注册一个帐号 以加入对话
