ssd Realtek RTL9201R Firmware 1.32.7

  • Stasiz
  • Stasiz's Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Posts: 5
  • Thanks: 1

Re: Realtek RTL9201R Firmware 1.32.7

1 month 2 weeks ago
#4557
@Shonk

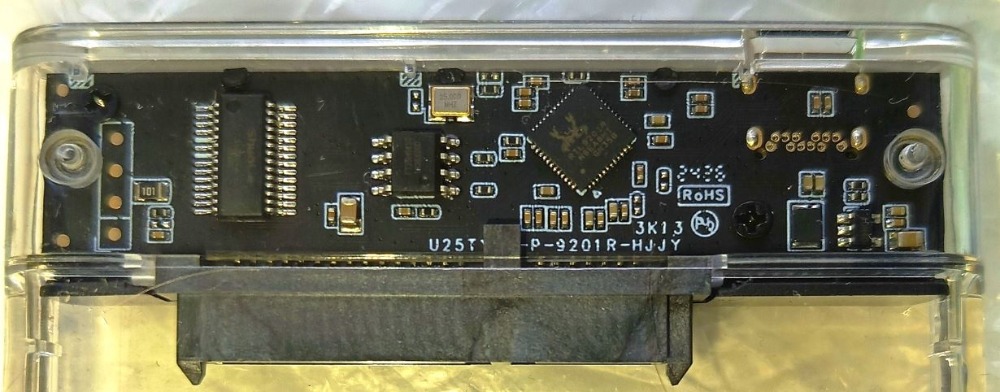

For collection. SPI dump 1.33.3 from ShuoLe enclosure.




Code:
************************************************************** Device : [Port6] : ShuoLe Super SSD #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x0000 MANUFACTURE : "ShuoLe " PRODUCT : "ShuoLe  Super SSD" SERIAL : "012345678950" SCSI_PRODUCT : "Super SSD       " SCSI_VENDOR : "ShuoLe  " USB_SELF_PWR : n/a DISK_HOTPLUG : 0x03 LED : n/a PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x64 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : 0x0000e100 CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : 0x01 RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.33.3 FW Build Date : 2023.09.27 IC Pkg Type : SATA UUID : n/a Disconn_ForceUSB2 : false
mega.nz/file/JQhRRLxA#ZE0Qzr15gpMYP8Hv6W...U134Uyr9l408NnG0n4vQ
The following user(s) said Thank You: Shonk

Please Connexion or Create an account to join the conversation.

  • Shonk
  • Shonk's Avatar Topic Author
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Posts: 81
  • Thanks: 32

Re: Realtek RTL9201R Firmware 1.32.7

1 month 2 weeks ago
#4558
thanks

did you remove the chip to dump it and confirm the dump was good with multiple dumps?

I found dumping in situ resulted in random corruption every dump was slightly different
so had to remove the chip

Please Connexion or Create an account to join the conversation.

  • Stasiz
  • Stasiz's Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Posts: 5
  • Thanks: 1

Re: Realtek RTL9201R Firmware 1.32.7

1 month 2 weeks ago - 1 month 2 weeks ago
#4565
I did not unsolder the chip. First I made one dump of the box with a color screen with NeoProgrammer, the second dump I made with AsProgrammer. Both dumps were identical. With this dump I successfully flashed the box with a monochrome screen.

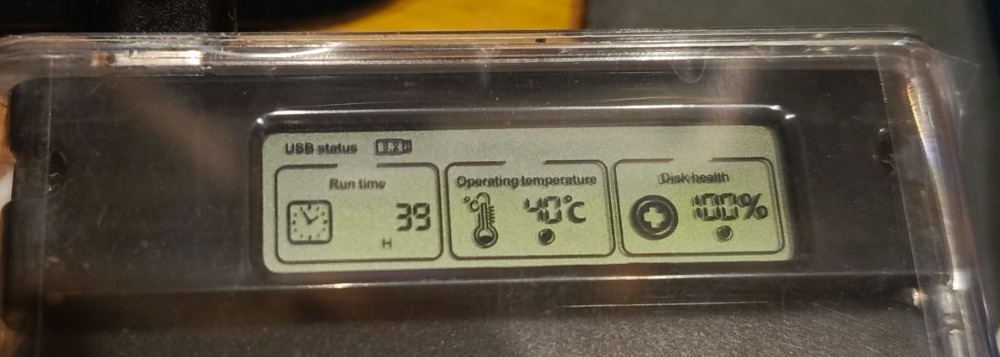

NeoProgrammer identifies memory in a case with a color screen as FT25H04, in a case with a monochrome screen as ZB25WD40.
In AsProgrammer I chose N25S40 Nantronics.

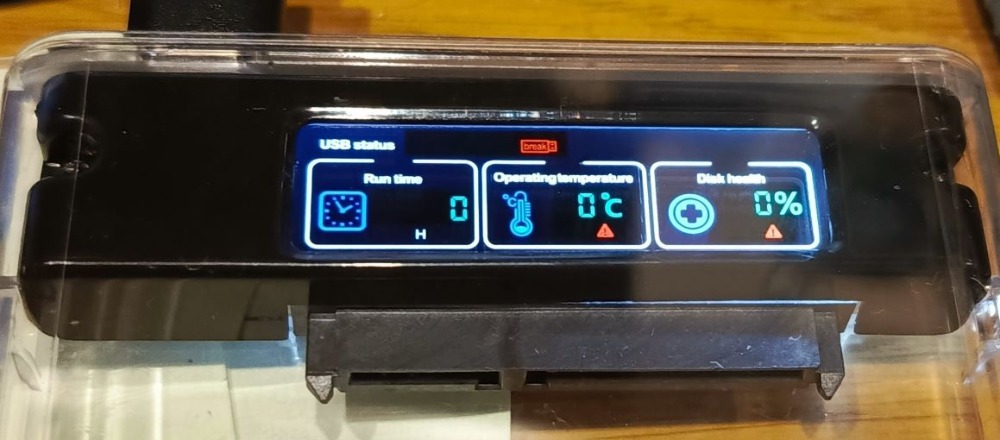

Before that I broke the smart information output on the case with a monochrome screen by flashing 1.32.7 firmware.
Apparently this firmware does not support the output of such information. Then I flashed your Cofre Disco Duro 1.33.88 SPI dump. This firmware is newer but does not have PERIPH_API = 0x01 in the configuration responsible for RTL9201R communication with an additional controller for display on the screen.

The original firmware in the case with a monochrome screen was 1.32.62
Code:
************************************************************** Device : [Port5] : Realtek RTL9201 #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x9201 MANUFACTURE : "Realtek" PRODUCT : "RTL9201" SERIAL : "012345678921" SCSI_PRODUCT : "RTL9201         " SCSI_VENDOR : "Realtek " USB_SELF_PWR : n/a DISK_HOTPLUG : 0x03 LED : n/a PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x64 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : 0x0000e100 CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : 0x01 RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.32.62 FW Build Date : 2023.06.05 IC Pkg Type : SATA UUID : n/a Disconn_ForceUSB2 : false
Last edit: 1 month 2 weeks ago by Stasiz.

Please Connexion or Create an account to join the conversation.

  • m.fessler
  • m.fessler's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 0

Re: Realtek RTL9201R Firmware 1.32.7

1 month 1 week ago
#4566
Hello,

I have an Orico 25PW1-C3 that apparently (also) ships with the RTL9201R.
I'm a complete newbie and don't have a programmer.
Is the bridge chip good so far, or does it have serious weaknesses?
UsbTreeView even says it's a 3.2 Gen 2 device (10 Gbps) – is that true, or is this a display error?

I would like to remove the sleep timer and rename "the case".
Is this possible with MPtool_Lite?
Would someone please be so kind as to briefly describe how?

Thank you in advance for any help!
Regards, Martin

Please Connexion or Create an account to join the conversation.

  • hiagoloy
  • hiagoloy's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 2
  • Thanks: 0

Re: Realtek RTL9201R Firmware 1.32.7

2 weeks 10 hours ago - 2 weeks 10 hours ago
#4728
Recently, I bought an USB-C Enclosure from AliExpress. Brand is Eaget. The issue is that I've noticed that, after a while, maybe a minute or 2, the HDD would kinda 'sleep'. I noticed that on windows, it won't disconnect. But after this time passes, it takes a while to create a new folder or access any file on the HDD. This has been a problem 'cause I'm trying to use the drive and it's really annoying me haha. the chip seems to be RTL9201R. Can you guys help me? I'm a newbie. I've downloaded MPtool_lite and got to this DUMP section which showed me this:
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9201
MANUFACTURE : "Realtek"
PRODUCT : "RTL9201"
SERIAL : "012345678999"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x03
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/aBoot Mode : Flash
FW Ver : 1.32.7
FW Build Date : 2022.11.25
IC Pkg Type : SATA
UUID : n/aDisconn_ForceUSB2 : false



Can I disable this timer the Case seems to have?

Attachments:

Last edit: 2 weeks 10 hours ago by hiagoloy. Reason: Better format of the text
