NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- Blast Beat
-
- Offline
- Poster
-
Enregistré
- Posts: 7
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 3 days ago
Hello everyone,
i got an enclosure JEYI i9GTR-2280 bought on Aliexpress with a RTL9210 chip and a very old firmware v1.21.17.
The goal is to flash v1.29.12.

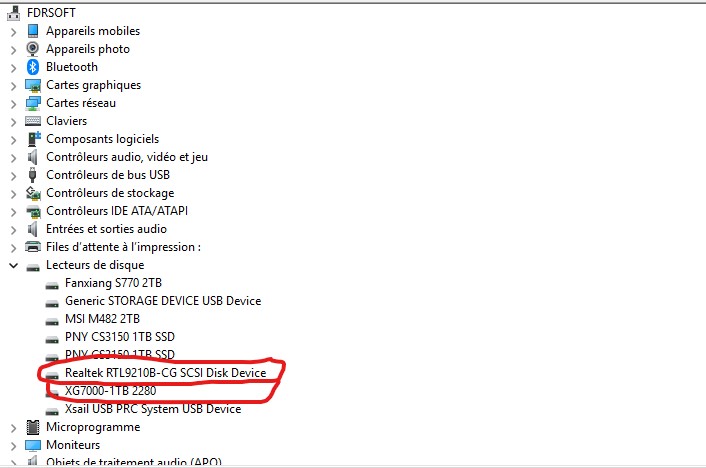

Windows see the enclosure as RTL9210 but on the pcb i can read 9210B.
This is my dump file, can you please edit it?
i got an enclosure JEYI i9GTR-2280 bought on Aliexpress with a RTL9210 chip and a very old firmware v1.21.17.
The goal is to flash v1.29.12.
Windows see the enclosure as RTL9210 but on the pcb i can read 9210B.
This is my dump file, can you please edit it?
Code:
**************************************************************
Device : [Port7] : Realtek RTL9210 NVME #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345679060"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "Realtek "
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00070000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : n/a
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
EFUSE :
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-------------------------------------------------
Boot Mode : Flash
FW Ver : 1.21.17
FW Build Date : 2020.04.14
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : 0x00
Please Log in or Create an account to join the conversation.
- admin
-
Topic Author
- Offline
- Admin
-
Administrateur
- Posts: 755
- Thanks: 379
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 3 days ago
Hi ,on the definition that Windows detects it does not matter whether it is a RTL9210 or 9210B because you can name it whatever you want as mine is an Asus TUF A1
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Please Log in or Create an account to join the conversation.
- Blast Beat
-
- Offline
- Poster
-
Enregistré
- Posts: 7
- Thanks: 1
- Laroldski
-
- Offline
- Best Poster
-
Enregistré
- Posts: 54
- Thanks: 6
- Blast Beat
-
- Offline
- Poster
-
Enregistré
- Posts: 7
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 3 days ago
Thnks you
Laroldski
I download the latest file for the version "A" here
Realtek RTL9210(A-
NVMe/USB 3.1 Controller firmware Version 1.30.21.070622
There was already in the configure folder a file named jeyi.cfg, i edit it just with my serial, than i used UTHSB MPtool Lite V1.14.8.0610 present in the main folder and full unlocked as you can see in the image attached.
From my point everything was right, i toke off the ssd, i switched off even the windows antivirus.
Few second after i started the update, i got an alert from the os (Win 11) of unknown device and few second later the flash procedure got error
I bricked my enclosure
I download the latest file for the version "A" here
Realtek RTL9210(A-
NVMe/USB 3.1 Controller firmware Version 1.30.21.070622
There was already in the configure folder a file named jeyi.cfg, i edit it just with my serial, than i used UTHSB MPtool Lite V1.14.8.0610 present in the main folder and full unlocked as you can see in the image attached.
From my point everything was right, i toke off the ssd, i switched off even the windows antivirus.
Few second after i started the update, i got an alert from the os (Win 11) of unknown device and few second later the flash procedure got error
I bricked my enclosure
