ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Replied by Galixte on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #1051
You can flash without SSD inside the USB enclosure. This parameter allows it:
Code:
DIS_SHOW_EMPTY_DISK : 0x01
Last Edit:1 year 4 months ago by Galixte
Last edit: 1 year 4 months ago by Galixte.
The following user(s) said Thank You: admin

Please Log in or Create an account to join the conversation.

Replied by ethereal on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #1053

If anyone is interested in testing, here is the latest firmware from JEYI - version 1.32.49:
krakenfiles.com/view/jqXPOCvl13/file.html
I flashed it on my ORICO enclosure with custom config file and everything works fine.

Thanks for providing this firmware.

Today I've flashed it to my Sabrent EC-SNVE and everything seems fine so far.

Please Log in or Create an account to join the conversation.

Replied by cyberops on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #1056

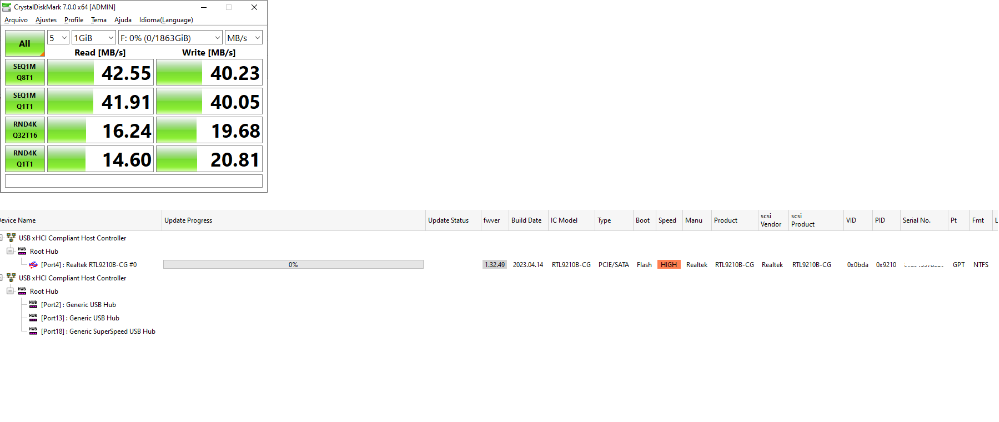

hello, i have an orico M2PJM-C3 with a RTL9210B with a Western Digital Green SN350. i have updated the firmware to 1.32.49 and i have this crystaldiskmark results. what am i doing wrong?
I also tried to run ubuntu and keep getting the drive to shutdown apparently. dont know what is happening.




Last Edit:1 year 4 months ago by cyberops
  • Last edit: 1 year 4 months ago by cyberops.

    Please Log in or Create an account to join the conversation.

    @cyberops

    Have you used the correct config file from your enclouser when you flashed the new firmware ?
    Have you checked if the usb port where the enclouser is connect is 3.1 or 2.0 ?
    Last Edit:1 year 4 months ago by spike_V_sky
    Last edit: 1 year 4 months ago by spike_V_sky.
    The following user(s) said Thank You: cyberops

    Please Log in or Create an account to join the conversation.

    • admin
    • admin's Avatar Away Topic Author
    • Admin
    • Admin
      Administrateur
    • Posts: 669
    • Thanks: 348

    Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

    Posted 1 year 4 months ago #1058

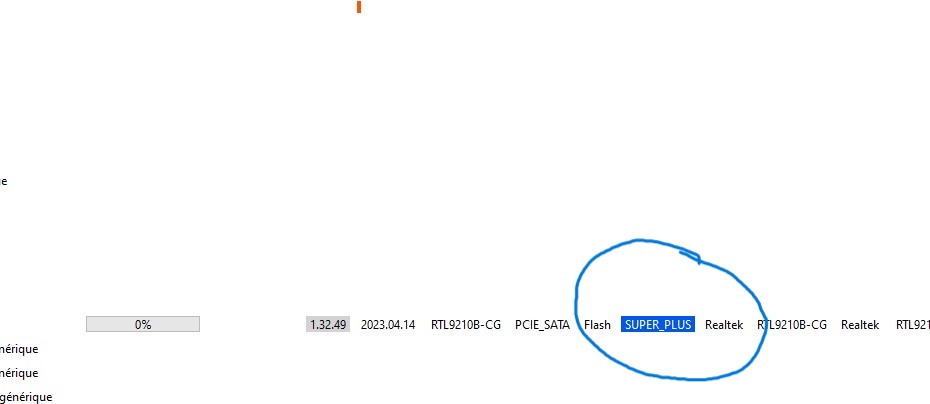

    spike_V_sky you are absolutely right, check that you have connected to a USB 3.2 port





    USB port speed


    USB 2.x


    USB 3.0/3.1


    USB 3.2



    Configuration
    Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

    Last Edit:1 year 4 months ago by admin
  • Last edit: 1 year 4 months ago by admin.

    Please Log in or Create an account to join the conversation.
