NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- cyberops
-
- Offline
- Poster
-
Enregistré
- Posts: 5
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 6 months ago - 1 year 6 months agoi used the default config file that was in the app (used all the default, ill post a printscreen soon). where can i find the correct config or how can i tell that im using the correct one?@cyberops
Have you used the correct config file from your enclouser when you flashed the new firmware ?
Have you checked if the usb port where the enclouser is connect is 3.1 or 2.0 ?

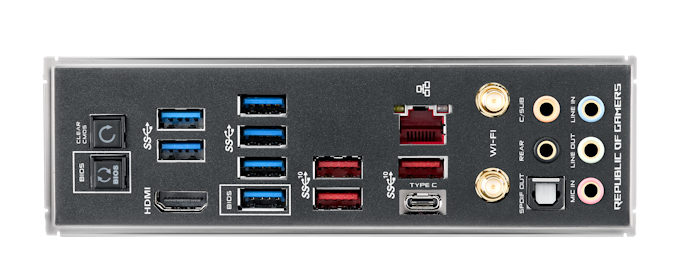

i used an usb 3.0 (blue one in the photo) port but i didnt use the supplied cable, probably this was the problem. should i use a 3.1 usb port (red usb port)?
thank you for your help
Last edit: 1 year 6 months ago by cyberops.
Please Log in or Create an account to join the conversation.
- admin
-
Topic Author
- Offline
- Admin
-
Administrateur
- Posts: 756
- Thanks: 379
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

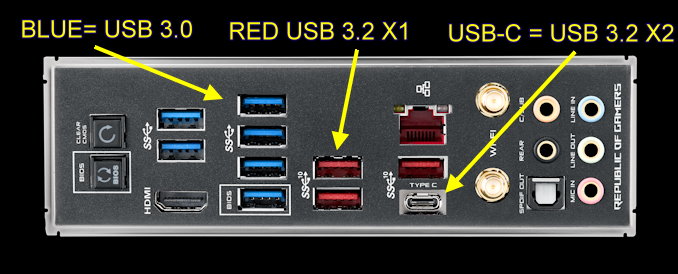

1 year 6 months ago - 1 year 6 months agoInstead, use the USB-C port in USB 3.2 X2 (20Gbps) to have the best speed (I also use USB-C with a 1M cable) otherwise the blue port is normally sufficient for 10Gbps
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 year 6 months ago by admin.
Please Log in or Create an account to join the conversation.
- cyberops
-
- Offline
- Poster
-
Enregistré
- Posts: 5
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 6 months ago
Instead, use the USB-C port in USB 3.2 X2 (20Gbps) to have the best speed (I also use USB-C with a 1M cable) otherwise the blue port is normally sufficient for 10Gbps
thank you for explanation

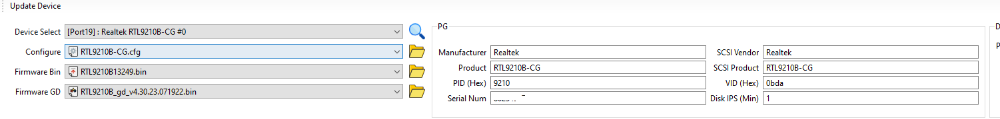

and regarding firmware update? i used this settings:Please Log in or Create an account to join the conversation.
- cyberops
-
- Offline
- Poster
-
Enregistré
- Posts: 5
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 6 months ago - 1 year 6 months ago
Instead, use the USB-C port in USB 3.2 X2 (20Gbps) to have the best speed (I also use USB-C with a 1M cable) otherwise the blue port is normally sufficient for 10Gbps

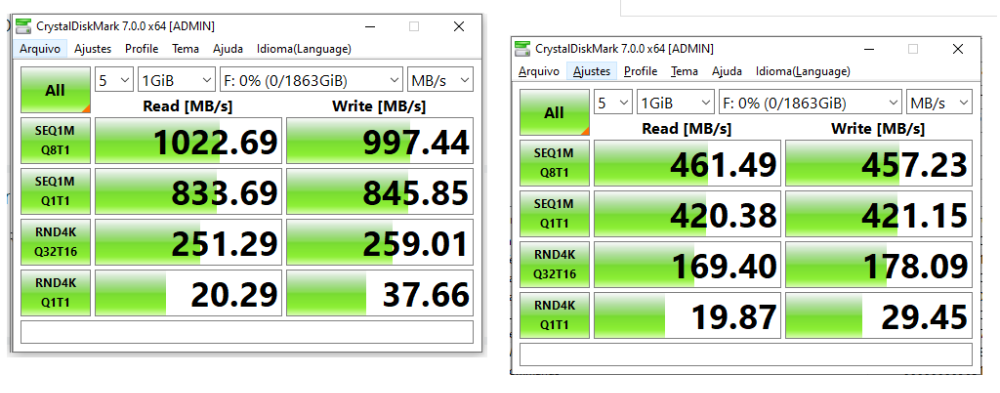

it seems that the cable i was using was not the best one. the left image is using usb-c provided cable, right image is using usb in a usb 3.0.
I still have problems (i think it powers down) with the device while working. does someone have any idea why? this happens in a old barebone with usb 2.0. is this because of not enough power?
just found this:
github.com/raspberrypi/linux/issues/4130
Last edit: 1 year 6 months ago by cyberops.
